Double Seal Multiple Spring (DM1)
Double seals in the DM1 series have the same design-features as the "SW" family of single seals (easy-to replace seal faces, etc.). Apart from the installation length of the drive collar, all fitting dimensions (d < 80 mm) conform with DIN 24960.
Application range :
Dw: 18...80 mm.
Pressure: 16 bar.
Temperature range: -40oC ~=+200oC

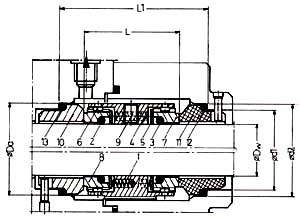

Circumferential speed: 20 m / sec. Item no. Description
1+6 drive collar with pin
2. o - ring
3 .o - ring
4. spring
5. thrust ring
7. seal face
8. seal face
9. set screw
10. stationary seat
11. stationary seat
12. o - ring
13 .o - ring | | DW | Da | Db | L | d1 | d2 | | 20 | 34 | 35 | 48 | 29 | 35 | | 22 | 36 | 35 | 48 | 31 | 37 | | 24 | 38 | 35 | 48 | 33 | 39 | | 25 | 39 | 35 | 48 | 34 | 40 | | 28 | 42 | 35 | 48 | 37 | 43 | | 30 | 44 | 35 | 48 | 39 | 45 | | 32 | 46 | 35 | 48 | 42 | 48 | | 35 | 49 | 35 | 48 | 44 | 50 | | 38 | 54 | 38 | 51 | 50 | 56 | | 40 | 56 | 38 | 51 | 52 | 58 | | 45 | 61 | 38 | 51 | 57 | 63 | | 50 | 66 | 39 | 52 | 62 | 68 | | 55 | 71 | 40 | 53 | 67 | 73 | | 60 | 78 | 41 | 57 | 72 | 81 | | 65 | 83 | 41 | 57 | 77 | 86 | | 70 | 90 | 42 | 58 | 83 | 92 | | 75 | 95 | 42 | 58 | 88 | 97 | | 80 | 100 | 42 | 58 | 96 | 105 | | 85 | 105 | 43 | 59 | 101 | 110 | | 90 | 110 | 45 | 61 | 106 | 115 | | 95 | 115 | 45 | 61 | 111 | 120 | | 100 | 120 | 45 | 61 | 116 | 125 | |
Design Features
- Interchangeable seal face-all combinations of materials are possible
- Simplified storage of components.
- Integral stationary seat lock Integral stop in the rotating part prevents stationary seat from slipping axially and the mechanical seal from opening (with a carbon stationary seat there is a wearing height of up to 0.5 mm.)
- Limitation of spring movement prevents excessive face wear
- Torque transmission ensures full mobility and adaptation of the sealing surface even with small run-outs. |
