Multi Spring (MT1)
This series is a typical multiple spring mechanical seal for industrial service developed through long experience and application technology, quality assurance, and high performance requirements. The seal has the advantages of low cost and prompt delivery resulting from our standardized production system. There are 13 standard seal types including both balanced and unbalanced, with various materials and face combination, for satisfying a wide variety of needs.
Application range :
Dw: 20...100 mm.
Pressure: 12 bar.
Temperature range: 20oC ~+200oC

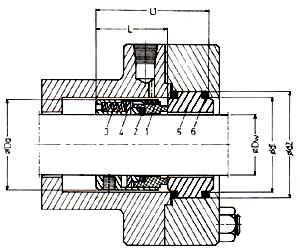

Circumferential speed: 25 m / sec. Item no. Description
1. seal face
2. v - packing
3. spring
4. thrust ring
5. stationary seat
6. o - ring | | DW | Da | Db | L | d1 | d2 | | 20 | 34 | 35 | 48 | 29 | 35 | | 22 | 36 | 35 | 48 | 31 | 37 | | 24 | 38 | 35 | 48 | 33 | 39 | | 25 | 39 | 35 | 48 | 34 | 40 | | 28 | 42 | 35 | 48 | 37 | 43 | | 30 | 44 | 35 | 48 | 39 | 45 | | 32 | 46 | 35 | 48 | 42 | 48 | | 35 | 49 | 35 | 48 | 44 | 50 | | 38 | 54 | 38 | 51 | 50 | 56 | | 40 | 56 | 38 | 51 | 52 | 58 | | 45 | 61 | 38 | 51 | 57 | 63 | | 50 | 66 | 39 | 52 | 62 | 68 | | 55 | 71 | 40 | 53 | 67 | 73 | | 60 | 78 | 41 | 57 | 72 | 81 | | 65 | 83 | 41 | 57 | 77 | 86 | | 70 | 90 | 42 | 58 | 83 | 92 | | 75 | 95 | 42 | 58 | 88 | 97 | | 80 | 100 | 42 | 58 | 96 | 105 | | 85 | 105 | 43 | 59 | 101 | 110 | | 90 | 110 | 45 | 61 | 106 | 115 | | 95 | 115 | 45 | 61 | 111 | 120 | | 100 | 120 | 45 | 61 | 116 | 125 | |
Design Features
- Interchangeable seal face-all combinations of materials are possible
- Integral stationary seat lock Integral stop in the rotating part prevents stationary seat from slipping axially and the mechanical seal from opening (with a carbon stationary seat there is a wearing height of up to 0.5 mm.)
- Limitation of spring movement prevents excessive face wear
- Torque transmission ensures full mobility and adaptation of the sealing surface even with small run-outs. |
