The type S2 utilizes a friction drive accomplished through an interference fit between a rotary, the rubber o-ring and the shaft. With this arrangement the driving torque is not transmitted through the coil spring, the seal can be used regardless of rotational direction and no other anti-rotational components are required. The unique rubber o-ring secondary seal provides a high degree of axial flexibility to compensate for misalignment and lack of concentricity to the shaft and functions without shaft wear due to thrust movement of the shaft. The type S2 seal is conventional general purpose mechanical seal, which can be applied to various types of pumps.

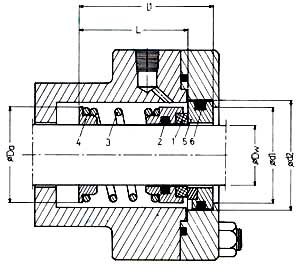

Application range : Dw: 14...50 mm. Pressure: 12 bar. Temperature range: -20 oC ~+180 oC Circumferential speed: 15 m / sec. Item no. Description 1. seal face 2. o - ring 3. spring 4. spring holder 5. stationary seat 6. o - ring
	DW Da Db L d1 d2 14 27.0 18.5 25 21 28 15 27.0 18.5 25 21 28 16 27.0 20.0 27 22 32 20 31.5 20.0 28 27 38 22 33.5 19.5 28 29 40 25 43.0 20.5 29 32 44 28 46.0 21.5 30 34 46 30 49.1 22.0 31 38 50 32 49.1 24.0 33 40 54 35 52.3 25.5 36 44 58 38 55.5 26.5 37 46 60 40 63.5 27.0 38 48 64 45 66.6 29.0 38 52 66 50 73.0 31.0 42 58 72
Design Features - torque transmission by cylindrical spring (3) - all face materials are interchangeable without dimensional changes. Face Materials: - sus 304, sus 316, tungsten carbide, carbon O-ring Materials : (Elastomers) : - viton (up to 200 oc) - EP - rubber (up to 120 [140] oc) - NBR (up to 100 oc) Metallic parts: - sus 304, sus 316
