This series is a typical mechanical seal for process pumps. It is similar to the SL2-series, and can be applied to high viscosity fluids and slurries. Shape and materials of the stationary ring are the same as that of the SL2-series. It is widely used as a standard mechanical seal and our records indicate substantial balanced and unbalanced available, with various material and shape combination suitable for a wide variety of needs.

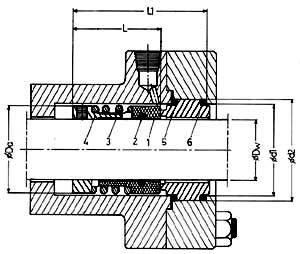

Application range : Dw: 20...80 mm. Pressure: 12 bar. Temperature range: -20 oC ~+200oC Circumferential speed: 20 m / sec. Item no. Description 1. seal face 2. o - ring 3. spring 4. collar 5. stationary seat 6. o - ring	DW Da Db L d1 d2 20 34 41 64 36 42 22 36 41 64 38 44 24 38 43 66 40 46 25 39 43 66 41 47 28 42 45 68 44 50 30 44 45 68 46 52 32 46 45 68 48 54 35 49 49 72 51 57 38 54 53 78 58 64 40 56 55 80 60 66 45 61 55 80 65 71 50 66 60 85 70 76 55 71 61 86 75 81 60 78 63 91 85 91 65 84 67 95 90 96 70 90 68 98 95 101 75 95 72 102 104 110 80 100 72 103 109 115
Design Features - torque transmission by cylindrical spring (3) - all face materials are interchangeable without dimensional changes. Face Materials: - sus 304, sus 316, tungsten carbide, carbon O-ring Materials : (Elastomers) : - viton (up to 200 oc) - EP - rubber (up to 120 [140] oc) - NBR (up to 100 oc)
